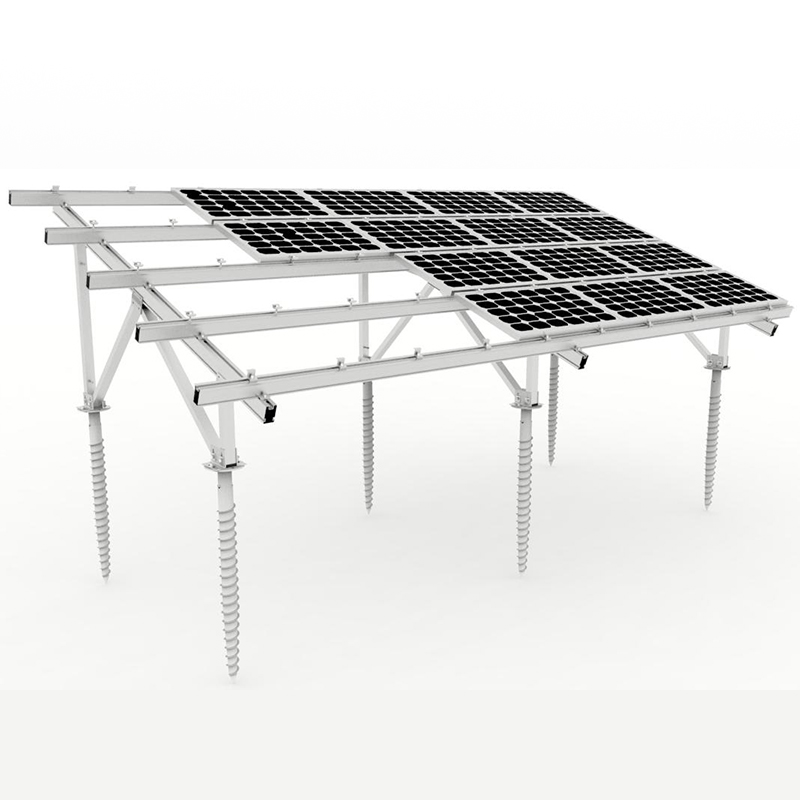

Overview
Characteristics of aluminum alloy photovoltaic support products
1. The product is entirely constructed using high-strength AL6005-T5 aluminum alloy and stainless steel 304 high-strength bolts;
2. The unit bracket and accessories are fully pre-assembled to minimize on-site construction time. Cement pier foundation or spiral pile foundation can be chosen
3. Applicable to the installation of most components
4. The unit supports and accessories are fully pre-assembled to minimize on-site construction time.

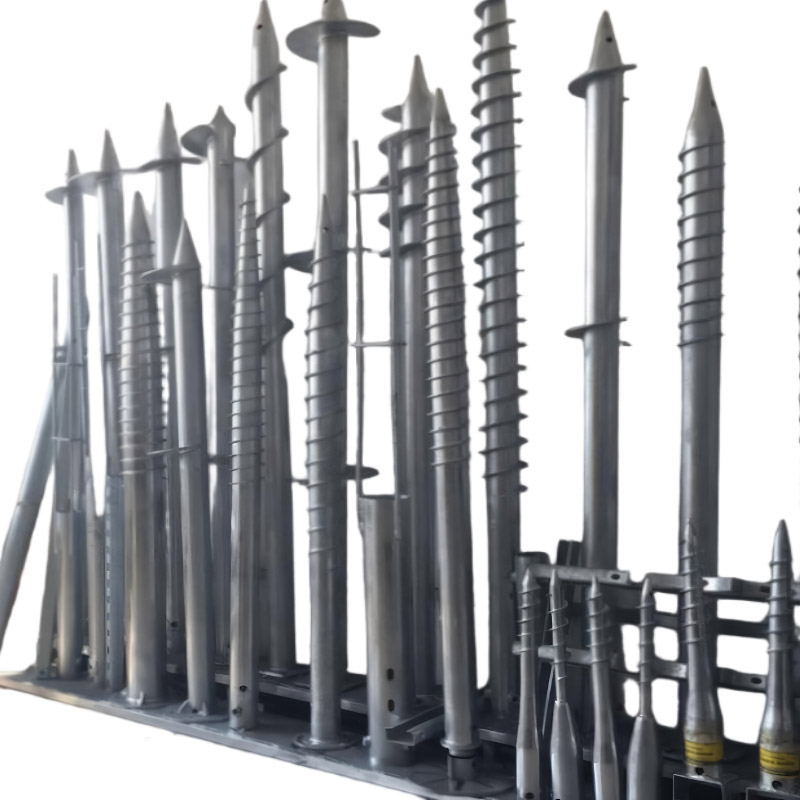

5. Applicable to concrete foundations and spiral pile foundations; suitable for flat land, as well as hillsides inclined in the east-west and north-south directions.

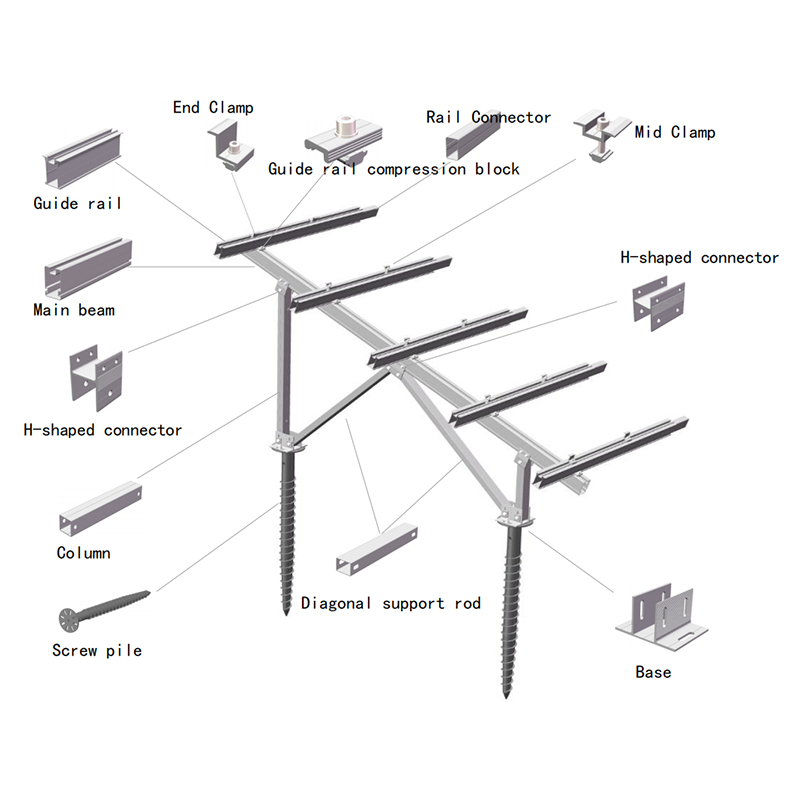

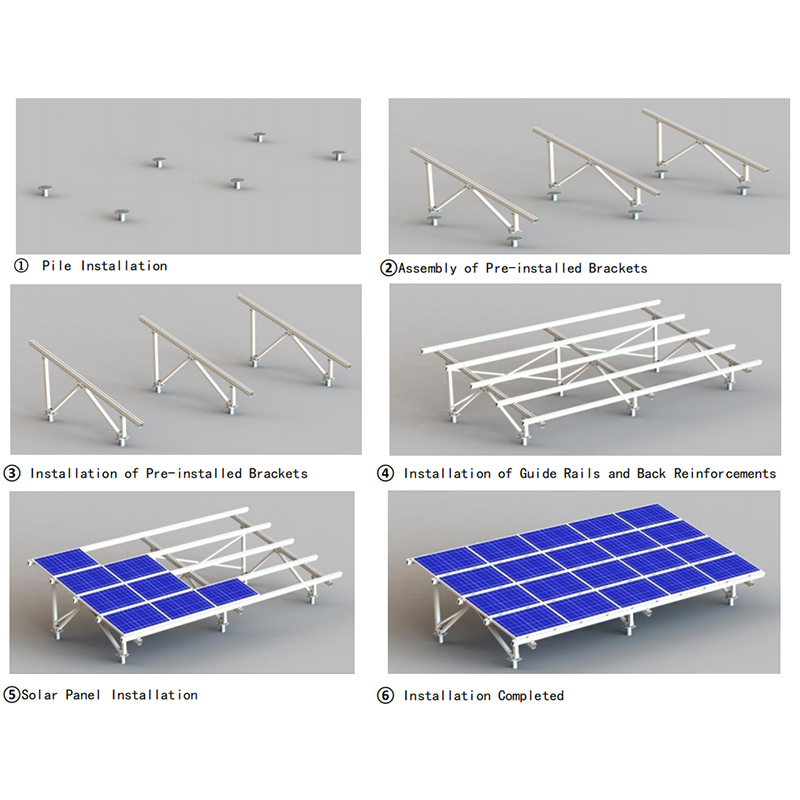

Installation Diagram
Installation Instructions
Wind speed: 25m/s to 40m/s
Snow pressure: 0.3kN/㎡ to 2kN/㎡
Design standards: AS/NZS 1170, ASCE 7-05, DIN 1044, BS EN 1990:2002, BS EN 1991-1-3:2000, BS EN 1991-1-4:2005, GB5079-2012, GB5009-2012
Installation site: Multiple ground scenarios
Main materials: AL6005-T5/Q235/SUS304/Q355
Fastener material: Q235/SUS304
Applicable components: Frame or frameless
Applicable arrangement: Horizontal/Vertical
